Chip
Apple M1 Max chip
10-core CPU with 8 performance cores and 2 efficiency cores
32-core GPU
16-core Neural Engine
400GB/s memory bandwidth
Media engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines
Display
Liquid Retina XDR display
16.2-inch (diagonal) Liquid Retina XDR display; 3456-by-2234 native
resolution at 254 pixels per inch
XDR (Extreme Dynamic Range)
Up to 1000 nits sustained (full-screen) brightness, 1600 nits peak brightness
1,000,000:1 contrast ratio
Color
1 billion colors
Wide color (P3)
True Tone technology
Refresh rates
ProMotion technology for adaptive refresh rates up to 120Hz
Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz
Memory
32GB
32GB unified memory
Battery and Power
Up to 21 hours Apple TV app movie playback
Up to 14 hours wireless web
100-watt-hour lithium-polymer battery
140W USB-C Power Adapter
USB-C to MagSafe 3 Cable
Fast-charge capable with included 140W USB-C Power Adapter
Storage
1TB
1TB SSD

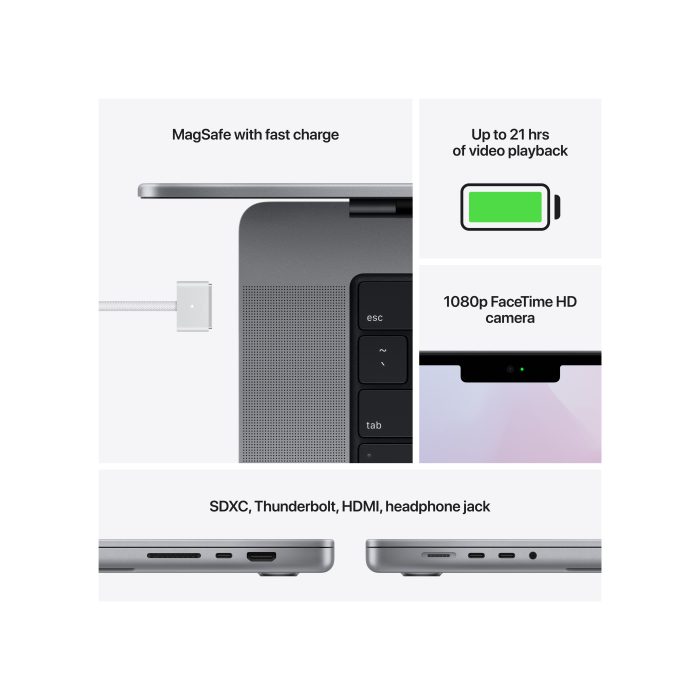

Charging and Expansion
SDXC card slot
HDMI port
3.5 mm headphone jack
MagSafe 3 port
Three Thunderbolt 4 (USB-C) ports with support for:
Charging
DisplayPort
Thunderbolt 4 (up to 40Gb/s)
USB 4 (up to 40Gb/s)
Video Support
Simultaneously supports full native resolution on the built-in display at 1 billion colors and:
Up to two external displays with up to 6K resolution at 60Hz at over a billion colors (M1 Pro) or
Up to three external displays with up to 6K resolution and one external display with up to 4K resolution at 60Hz at over a billion colors (M1 Max)
Thunderbolt 4 digital video output
Native DisplayPort output over USB‑C
VGA, HDMI, DVI, and Thunderbolt 2 output supported using adapters (sold separately)
HDMI digital video output
Support for one display with up to 4K resolution at 60Hz
DVI output using HDMI to DVI Adapter (sold separately)

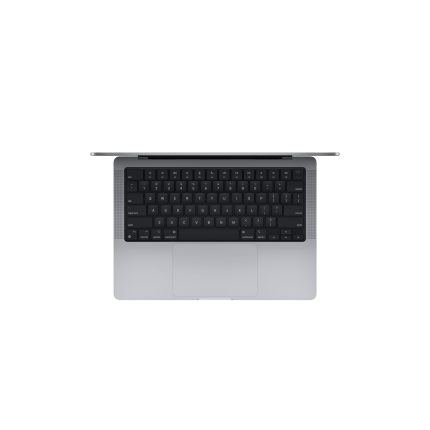

Keyboard and Trackpad
Backlit Magic Keyboard with:
78 (U.S.) or 79 (ISO) keys including 12 full-height function keys and 4 arrow keys in an inverted-T arrangement
Touch ID
Ambient light sensor
Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures
Wireless
Wi-Fi
802.11ax Wi-Fi 6 wireless networking
IEEE 802.11a/b/g/n/ac compatible
Bluetooth
Bluetooth 5.0 wireless technology
1080p FaceTime HD camera
Advanced image signal processor with computational video
Audio
High-fidelity six-speaker sound system with force-cancelling woofers
Wide stereo sound
Support for spatial audio when playing music or video with Dolby Atmos on built-in speakers
Spatial audio with dynamic head tracking when using AirPods (3rd generation), AirPods Pro, and AirPods Max
Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
3.5 mm headphone jack with advanced support for high-impedance headphones
Operating Requirements
Line voltage: 100V to 240V AC
Frequency: 50Hz to 60Hz
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: –13° to 113° F (–25° to 45° C)
Relative humidity: 0% to 90% noncondensing
Operating altitude: tested up to 10,000 feet
Maximum storage altitude: 15,000 feet
Maximum shipping altitude: 35,000 feet
Size and Weight
Height 0.66 inch (1.68 cm)
Width: 14.01 inches (35.57 cm)
Depth: 9.77 inches (24.81 cm)
Weight (M1 Pro): 4.7 pounds (2.1 kg)
Weight (M1 Max): 4.8 pounds (2.2 kg)
Operating System
macOS
macOS is the most advanced desktop operating system in the world. macOS Monterey introduces powerful new features to help you connect, share, and create like never before.
